We are pleased to introduce the Large-Scale Mud Dewatering Filter Press, a specialized solid-liquid separation equipment designed for the treatment of large quantities of mud materials. This robust machine features an enhanced steel structure frame as its main support component, capable of withstanding high-pressure operating conditions for extended periods. The core unit of the equipment consists of multiple large filter plates that, when compressed, form a series of sealed filter chambers.
How It Works
The large-scale mud dewatering filter press operates through the following process:
- Mud Feeding: The mud is fed into the filter chambers via a high-pressure feed pump.
- Filtration: Under pressure, the liquid phase passes through the filter media and is discharged as filtrate, while the solid phase is trapped within the chamber, gradually forming a filter cake.
- Cake Discharge: Once filtration is complete, the filter plates are automatically released, and the filter cake is removed via mechanical devices or gravity. Some models are equipped with a diaphragm squeezing system that performs secondary pressing after the primary filtration stage to further reduce the moisture content of the filter cake.
The system is equipped with an automatic control unit, allowing precise regulation of key parameters such as pressure, feed flow rate, and filtration time. Additionally, the equipment typically includes an automatic filter cloth cleaning mechanism to ensure that the filtration media maintains optimal permeability. For large models, a centralized lubrication system is incorporated to reduce maintenance efforts.
Key Advantages
- High Processing Capacity: A standout feature of the large-scale filter press is its ability to handle vast quantities of material. With a filter area of up to several hundred square meters, it is capable of processing large batches, meeting the demands of continuous, large-scale industrial production.
- Energy Efficiency: The equipment is designed to optimize fluid flow paths and incorporate high-pressure diaphragm squeezing technology, achieving high dewatering efficiency at relatively low energy consumption, thereby reducing per-unit treatment costs.
- Operational Stability: The machine’s critical components, such as the frame and cylinder base, are manufactured using cast or welded structures for enhanced fatigue resistance. The hydraulic system is designed for integration, with reliable seals to ensure stable long-term operation.
- High Degree of Automation: The entire process, from filter plate compression, feed delivery, pressing, to discharge, is automated, significantly reducing manual intervention. The control system is equipped with memory functions, fault diagnostics, and safety interlocks to enhance operational safety and efficiency.
- Wide Material Compatibility: The equipment can handle a broad range of mud materials with varying concentrations, particle sizes, and viscosities. By adjusting filtration pressure, changing the filter media, or adding auxiliary functions, it can process different types of slurry.
- Efficient Space Utilization: While large in size, the filter press has been designed with space optimization in mind, balancing its footprint with processing capacity. This makes it ideal for factory floor layouts, where space is a premium.
Applicable Industries and Fields
The large-scale mud dewatering filter press is highly versatile and can be used across various industries, including:
- Mineral Resource Development: Ideal for handling tailings slurry from metal ore beneficiation, coal slurry from washing processes, and fine particle suspensions from non-metallic mineral processing.

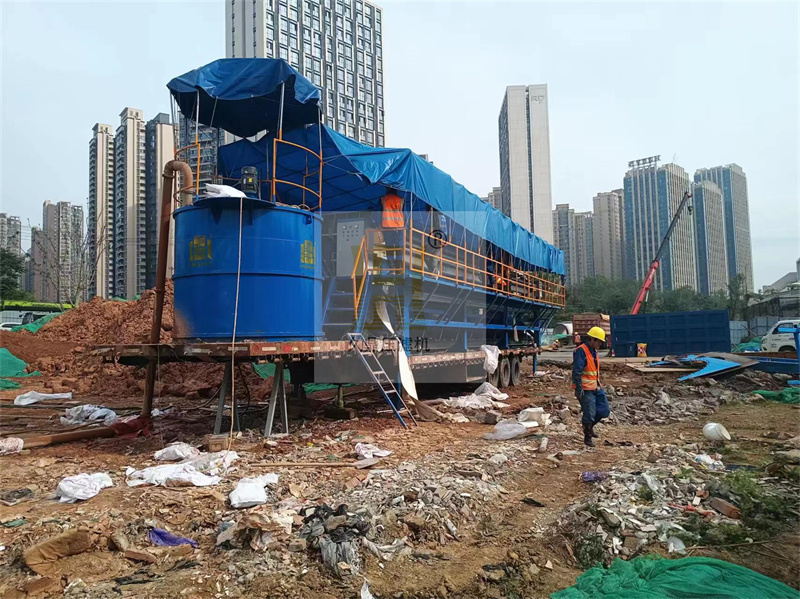

- Infrastructure Construction: Effective for treating slurry from tunnel construction, drilling mud from foundation piling, and dredged mud from riverbed cleaning projects.
- Environmental Management: Used to treat residual sludge from municipal wastewater treatment plants, sludge from drinking water plants, and various types of industrial wastewater, including biochemical and chemical sludges.
- Industrial Manufacturing: Perfect for handling slurry from the ceramics industry (wastewater from greenware), the stone processing industry (polishing wastewater), the steel industry (continuous casting wastewater), and the paper industry (pulp wastewater).
- Energy Development: Suitable for processing drilling mud from oil and gas drilling operations, as well as fracturing flowback fluid from shale gas extraction.
Performance and Treatment Capacity
The large-scale mud dewatering filter press is capable of processing slurry with an initial moisture content ranging from 90% to 99%. By adjusting operational parameters, the equipment can accommodate materials with varying acidity/alkalinity and particle distributions. After treatment, the moisture content of the filter cake typically ranges from 30% to 50%, depending on the material characteristics and process settings.
Conclusion
The Large-Scale Mud Dewatering Filter Press is an invaluable solution for industries requiring high-capacity solid-liquid separation. With its advanced technology, robust design, and efficient performance, it offers an excellent combination of high processing capacity, energy efficiency, and ease of operation. Whether you’re in mining, construction, environmental management, industrial manufacturing, or energy development, this equipment is designed to meet the demands of large-scale, continuous processing operations.
