Filter Press

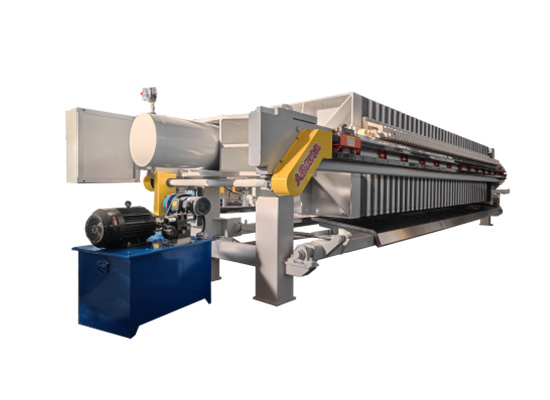

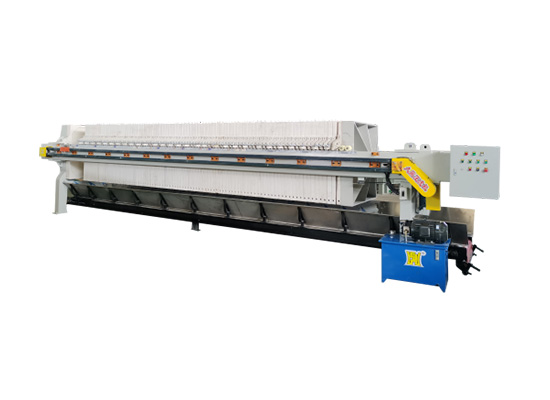

Chamber Filter Press

The chamber filter press is the most classic and fundamental model in the filter press family and is considered the workhorse of solid-liquid separation. Its simple structure, durability, and low cost make it a preferred or most cost-effective solution in many industrial applications.

Get in Touch

Share To:

Home / Products / Filter Press / Chamber Filter Press

Product Introduction

It is an intermittent filtration device in which filter plates are pressed together to form sealed chambers. Under positive pressure, a filter cloth serves as the filtration medium, allowing the solid-liquid mixture (slurry) to undergo separation within each chamber.

Key Features and Advantages

Simple Structure

Relatively low failure rate and easy maintenance.

Wide Applicability

Suitable for solid-liquid separation of various viscous and fine materials.

High Filtration Pressure

The static seal can withstand high feed pressures, producing relatively dry filter cakes.

Easy Operation

Simple to understand and operate.

Low Cost

Initial purchase cost is lower compared to diaphragm filter presses.

Main Applications

Photovoltaic New Energy Industry

In the purification of photovoltaic materials (such as silicon, quartz sand) and the recovery of cutting fluid, a large amount of wastewater containing fine particulate matter will be produced.
Zhonghao filter press can efficiently achieve solid-liquid separation, recover valuable metal powder and cutting fluid, and the moisture content of the filter cake is low, which is convenient for resource utilization.

Petrochemical Industry

In the petrochemical production process, sludge with complex components containing oil and catalysts will be produced.
Zhonghao filter press adopts special filter cloth and optimized structure, which is corrosion-resistant and has good sealing.
It can efficiently treat such sludge, the filtrate is clear, and the separation is accurate to meet the requirements of environmental protection and discharge.

Food Medicine Industry

In food processing (such as starch, juice, yeast) and pharmaceutical (antibiotics, traditional Chinese medicine extraction, fermentation liquid) processes, there are a large number of links that require precise solid-liquid separation.
Zhonghao filter presses use materials and designs that meet food hygiene standards to ensure quality and safety, efficiently separate and recycle valuable intermediate products or by-products, and ensure the safety and quality of the final product.

Municipal Sewage Industry

Dehydration is a key part of the biochemical sludge produced by municipal sewage treatment plants.
Zhonghao filter press equipment has a high degree of automation and stable operation. It can continuously press the flowing sludge into dry and hard mud cakes, greatly reducing the volume and weight of the sludge, creating favorable conditions for subsequent incineration, composting or landfill disposal, and effectively reducing municipal operating costs.

Tailings Mine Industry

Facing the mud treatment problems caused by tailings, sand washing, etc., Zhonghao filter press has demonstrated excellent dehydration performance.
It can compress ore slurry with extremely high moisture content into a sturdy, low moisture content filter cake, reducing the risk of environmental pollution.

Aquaculture Wastewater Industry

Aquaculture wastewater is rich in nitrogen, phosphorus and organic matter, and direct discharge is extremely harmful.
The Zhonghao filter press function quickly separates the suspended solids and manurefrom the wastewater to form dry manure residue.
These manure residues are high-quality raw materials for making organic fertilizers, which realize the resource utilization of waste.

Automation options

Customers can independently select and configure corresponding automation options based on their actual business scenarios to optimize the operational efficiency of automated business processes.

PLC control System

Automatic Plate Shifting

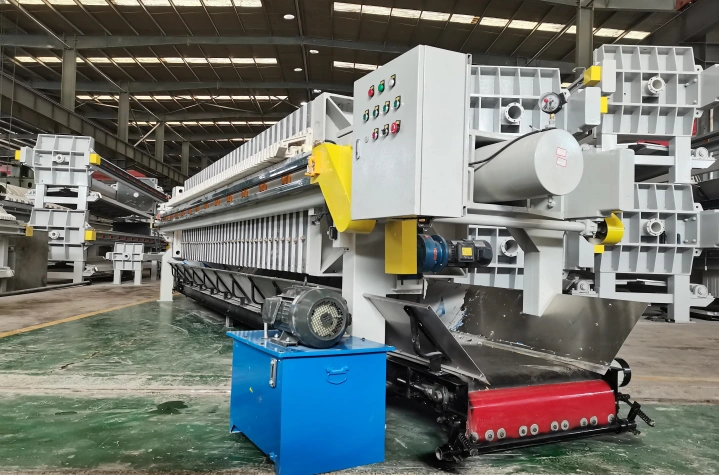

Belt Conveyor System

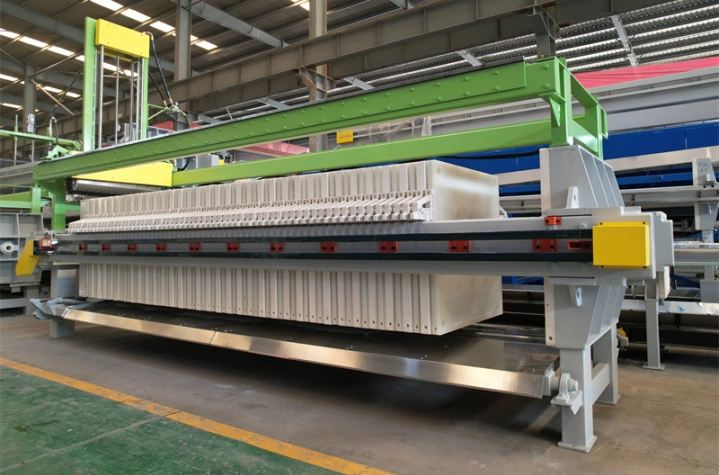

Automatic Washing System

Automatic Filter Cake Removing System

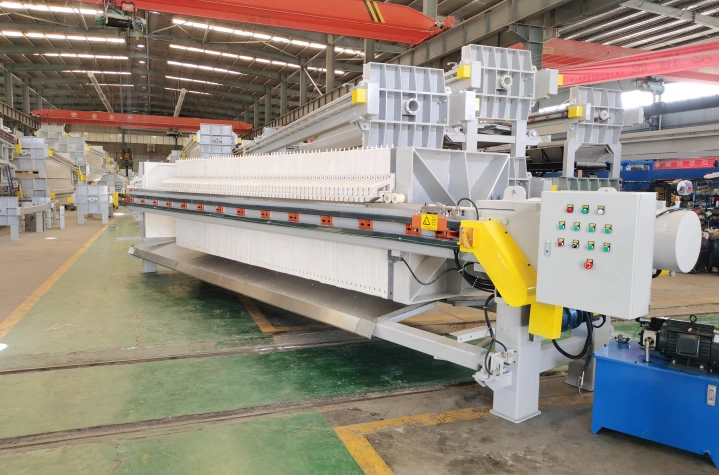

Liquid Collection Flap System

Automatic belt conveyor system

Automatic drip tray

Automatic plate shifer system

Automatic vibration system

Automatic washing system

Parameter Information

Model	Filtration Area	Filter Plates Size	Filter Cake Thickness	Chamber Volume	Filter Plates	Filtration Pressure	Motor Power	Machine weight	Dimensions	Foundation Dimensions
Model	㎡	mm	mm	L	PCS	Mpa	Kw	KG	LWH (mm)	L	B	D	H
XZ30/870-30U	30	870 × 870 / 800 × 800	30	460	23	0.6	2.2	3046	3320X1400X1300	2565	650	1380	815
XZ40/870-30U	40			595	30			3593	3700X1400X1300	2950
XZ50/870-30U	50			748	38			4057	4140X1400X1300	3390
XZ60/870-30U2	60			902	46			4597	4580X1400X1300	3830
XZ70/870-30U	70			1056	54			5136	5020X1400X1300	4270
XZ80/870-30U	80			1210	62			5636	5460X1400X1300	4710
XZ50/1000-30U2	50	1000 × 1000		752	28	0.6	3.0	4128	4150X1500X1400	3100	800	1480	870
XZ60/1000-30U	60			908	34			4636	4460X1500X1400	3460
XZ70/1000-30U	70			1063	40			5143	4760X1500X1400	3820
XZ80/1000-30U	80			1219	46			5651	5120X1500X1400	4180
XZ100/1000-30U	100			1505	57			6628	5780X1500X1400	4840
XZ120/1000-30U3	120			1816	69			7644	6500X1500X1400	5560
XZ100/1250-30U	100	1250 × 1250	30	1506	36	0.6	5.5	8307	5170×1850×1600	3990	950	1740	925
XZ120/1250-30U	120			1791	43			9308	5625×1850×1600	4450
XZ140/1250-30U	140			2117	51			10455	6145×1850×1600	4960
XZ160/1250-30U	160			2402	58			11492	6600×1850×1600	5420
XZ180/1250-30U	180			2687	65			12494	7055×1850×1600	5870
XZ200/1250-30U	200			2972	72			13504	7510×1850×1600	6330
XZ220/1250-30U	220			3298	80			14652	8030×1850×1600	6850
XZ250/1250-30U	250			3745	91			15227	8745×1850×1600	7560
XZ200/1500-30U	200	1500 × 1500		3025	49	0.6	7.5	20030	6640×2100×1820	5310	1200	1990	1070
XZ250/1500-30U	250			3750	61			22978	7480×2100×1820	6150
XZ300/1500-30U	300			4476	73			26026	8390×2100×1820	6990
XZ350/1500-30U	350			5202	85			29220	9230×2100×1820	7830
XZ400/1500-30U	400			6049	99			32574	10140×2100×1820	8810
XZ450/1500-30U	450			6775	111			35586	10980×2100×1820	9650
XZ500/1500-30U	500			7501	123			38606	11820×2100×1820	10490
XZ600/2000-30U	600	2000 × 2000	40	12000	83	0.6	7.5	49000	10890×3000×2500	9040	1600	2500	1500
XZ700/2000-30U	700			14000	97			53000	12010×3000×2500	10160
XZ800/2000-30U	800			16000	111			57000	13130×3000×2500	11280
XZ900/2000-30U	900			18000	125			61000	14250×3000×2500	12400
XZ1000/2000-30U	1000			20000	139			65000	15370×3000×2500	13520
XZ250/1600-40U	250	1600 × 1600	40	4973	55	0.6	7.5	19816	7505×2450×2000	6005	1220	900	200
XZ300/1600-40U	300			6039	67			21665	8405×2450×2000	6905
XZ350/1600-40U	350			7016	78			23360	9230×2450×2000	7730
XZ400/1600-40U	400			7992	89			25055	10055×2450×2000	8555
XZ450/1600-40U	450			8969	100			26750	10880×2450×2000	9380
XZ500/1600-40U	500			10035	112			28599	11780×2450×2000	10280
XZ600/1600-40U	600			11989	134			31990	13430×2450×2000	11930
XZ350/1500-2000-40U	350	1500 × 2000	40	7041	66	0.6	7.5	32680	9430X2350X2400	7680	1120	1800	1400
XZ400/1500-2000-40U	400			7986	75			34494	10150×2350X2400	8400
XZ450/1500-2000-40U	450			9037	85			36510	10950X2350X2400	9200
XZ500/1500-2000-40U	500			9983	94			38324	11670X2350X2400	9920
XZ5501500-2000-40U	550			11034	104			40340	12470X2350X2400	10720
XZ600/1500-2000-40U	600			11980	113			42155	13190X2350X2400	11440
XZ650/1500-2000-40U	650			13030	123			44171	13990X2350X2400	12240
XZ7001500-2000-40U	700			13976	132			45985	14710×2350X2400	12960

Frequently Asked Questions

Our popular products include: vehicle-mounted sludge solidification units, diaphragm filter presses, sludge dewatering machines, as well as engineering design and installation services for municipal sludge and sand-washing sludge treatment.

How to choose the right filter press model based on material properties?

Selecting a filter press model depends on key material properties: particle size (to determine filter cloth mesh), viscosity (affects required pressure), corrosiveness (dictates filter plate material, e.g., PP for mild corrosion, stainless steel for strong), and solid content (influences filtration area and cycle time). High-solids materials need larger filtration areas, while abrasive materials require wear-resistant plates. Match pressure ratings to material viscosity—thicker slurries need higher pressure (1.0–2.5 MPa) for effective dewatering.

What to do if filter plates leak?

First, stop operation and check:

Filter cloths: Replace damaged or misaligned cloths that disrupt sealing.
Filter plate seals: Inspect for cracks, wear, or debris; clean seals or replace plates if damaged.
Pressure imbalance: Ensure uniform pressure across plates (adjust hydraulic system if uneven).
Plate alignment: Realign plates if shifted during operation. Test with low pressure after fixes to confirm leaks are resolved.

Do filter cloths need regular replacement? How often?

Yes, filter cloths require regular replacement as they clog, tear, or degrade over time, reducing filtration efficiency. Frequency depends on material: 4–8 weeks for abrasive/viscous materials (e.g., mining slurries); 3–6 months for less harsh materials (e.g., food-grade liquids). Signs to replace early: slower filtration, increased pressure, or visible damage (holes, fraying).

Is installation and operation training provided after purchase?

We offer installation and operation training post-purchase. This typically includes on-site installation guidance, hands-on operation training (e.g., setting parameters, troubleshooting), and documentation (manuals, video tutorials). Some provide follow-up support for 1–3 months to ensure operators master key functions, especially for automated or custom models.

If the power supply is not the issue, how to fix the machine tripping and shutting down?

Check these common causes:

Overload: Motor may be overworked (e.g., excessive slurry feed); reduce load or inspect for jammed components (e.g., filter plate movement).
Faulty sensors: Pressure or temperature sensors may trigger safety shutdowns; calibrate or replace malfunctioning sensors.
Hydraulic system issues: Low oil level or clogged filters can cause pressure spikes; check fluid levels and clean/replace filters.
Electrical connections: Loose wires in control panels may interrupt power; tighten connections and inspect for short circuits.
