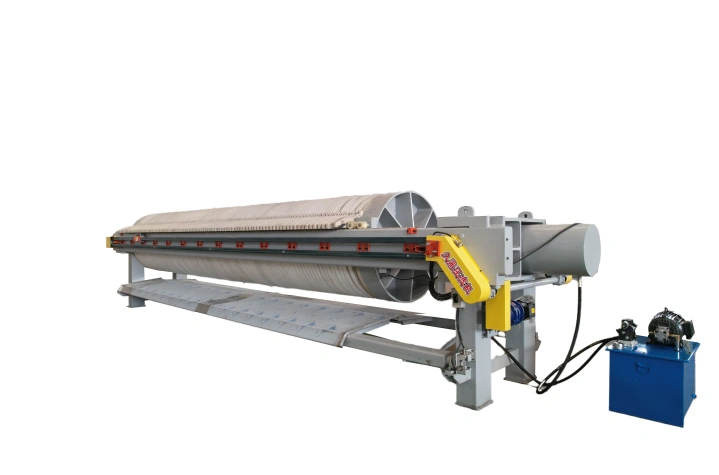

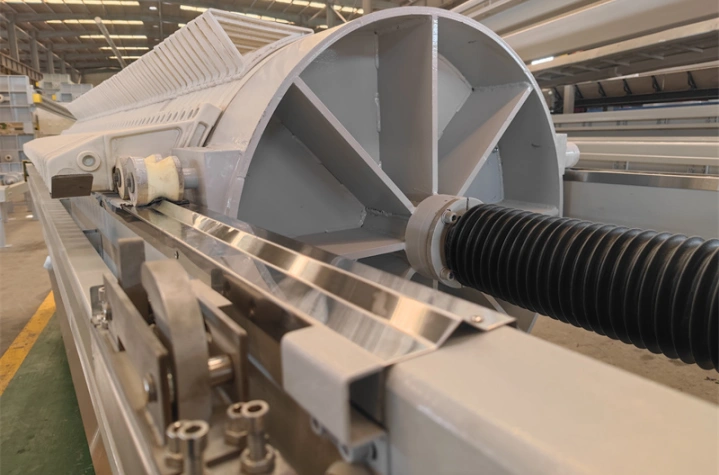

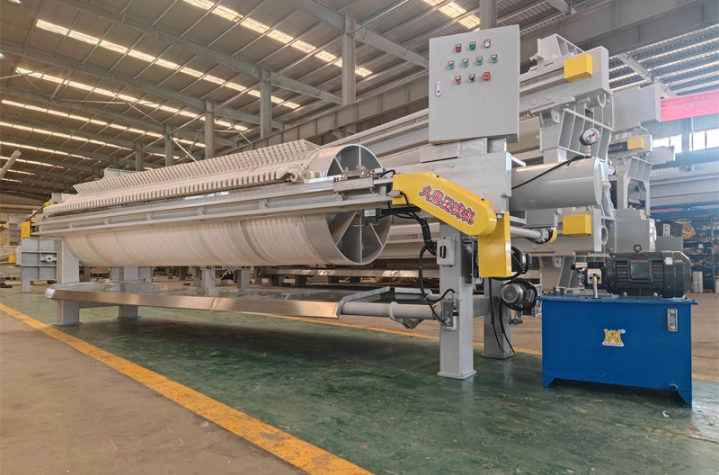

Round Plate Filter Press

Round Plate Filter Press is a typical representative of filter press technology moving toward high-end automation, large-scale operation, and environmental protection.

Get in Touch

Share To:

Home / Products / Filter Press / Round Plate Filter Press

Product Introduction

Round Plate Filter Press is a typical representative of filter press technology moving toward high-end automation, large-scale operation, and environmental protection. It offers unparalleled automation, a clean working environment, and high processing capacity. It is the ideal choice for large mining and chemical enterprises pursuing production efficiency and modernized management.

Key Features and Advantages

Extremely high level of automation

No manual intervention required: The entire process (feeding, filtering, pressing, drying, and discharge) is fully completed inside a sealed container. It enables true “one-button” operation with minimal labor costs.

Highly efficient and clean discharge

Materials are discharged using centrifugal force, with all filter plates unloading simultaneously. This ensures fast and thorough discharge, solving the problems of incomplete discharge and manual assistance often required in chamber filter presses.

Clean and environmentally friendly working environment

All operations are conducted within a sealed pressure vessel, with no exposure of materials or odor emissions. The site remains very clean, making it suitable for environments with strict environmental and hygiene requirements.

Highly uniform filter cake dryness

Since all filter cakes are subjected to the same pressure and conditions inside the vessel, the dryness consistency across all filter plates is excellent.

Large processing capacity with space efficiency

The vertical design occupies a small footprint while providing very high single-unit processing capacity.

Main Applications

Photovoltaic New Energy Industry

In the purification of photovoltaic materials (such as silicon, quartz sand) and the recovery of cutting fluid, a large amount of wastewater containing fine particulate matter will be produced.
Zhonghao filter press can efficiently achieve solid-liquid separation, recover valuable metal powder and cutting fluid, and the moisture content of the filter cake is low, which is convenient for resource utilization.

Petrochemical Industry

In the petrochemical production process, sludge with complex components containing oil and catalysts will be produced.
Zhonghao filter press adopts special filter cloth and optimized structure, which is corrosion-resistant and has good sealing.
It can efficiently treat such sludge, the filtrate is clear, and the separation is accurate to meet the requirements of environmental protection and discharge.

Food Medicine Industry

In food processing (such as starch, juice, yeast) and pharmaceutical (antibiotics, traditional Chinese medicine extraction, fermentation liquid) processes, there are a large number of links that require precise solid-liquid separation.
Zhonghao filter presses use materials and designs that meet food hygiene standards to ensure quality and safety, efficiently separate and recycle valuable intermediate products or by-products, and ensure the safety and quality of the final product.

Municipal Sewage Industry

Dehydration is a key part of the biochemical sludge produced by municipal sewage treatment plants.
Zhonghao filter press equipment has a high degree of automation and stable operation. It can continuously press the flowing sludge into dry and hard mud cakes, greatly reducing the volume and weight of the sludge, creating favorable conditions for subsequent incineration, composting or landfill disposal, and effectively reducing municipal operating costs.

Tailings Mine Industry

Facing the mud treatment problems caused by tailings, sand washing, etc., Zhonghao filter press has demonstrated excellent dehydration performance.
It can compress ore slurry with extremely high moisture content into a sturdy, low moisture content filter cake, reducing the risk of environmental pollution.

Aquaculture Wastewater Industry

Aquaculture wastewater is rich in nitrogen, phosphorus and organic matter, and direct discharge is extremely harmful.
The Zhonghao filter press function quickly separates the suspended solids and manurefrom the wastewater to form dry manure residue.
These manure residues are high-quality raw materials for making organic fertilizers, which realize the resource utilization of waste.

Explanatory Video

Automation options

Customers can independently select and configure corresponding automation options based on their actual business scenarios to optimize the operational efficiency of automated business processes.

PLC control System

Automatic Plate Shifting

Belt Conveyor System

Automatic Washing System

Automatic Filter Cake Removing System

Liquid Collection Flap System

Automatic belt conveyor system

Automatic drip tray

Automatic plate shifer system

Automatic vibration system

Automatic washing system

Parameter Information

Model	Filtration Area	Filter Plates Size	Filter Cake Thickness	Chamber Volume	Filter Plates	Filtration Pressure	Motor Power	Machine Weight	Dimensions (mm)			Foundation Dimensions (mm)
Model	㎡	mm	mm	L	pcs	Mpa	Kw	KG	L	W	H	L	B	D	H
XAM80/φ1200-30	80	φ1200	30	1203	42	1.0-2.0	7.5	5413	5685	1800	1550	4585	910	1400	950
XAM100/φ1200-30	100	φ1200	30	1511	53	1.0-2.0	7.5	6040	6400			5300
XAM120/φ1200-30	120	φ1200	30	1791	63	1.0-2.0	7.5	6610	7050			5950
XAM140/φ1200-30	140	φ1200	30	2098	74	1.0-2.0	7.5	7237	7765			6665
XAM160/φ1200-30	160	φ1200	30	2406	85	1.0-2.0	7.5	7864	8480			7380
XAM180/φ1200-30	180	φ1200	30	2714	96	1.0-2.0	7.5	8491	9195			8095
XAM200/φ1200-30	200	中1200	30	2994	106	1.0-2.0	7.5	9061	9845			8745
XAM220/φ1200-30	220	φ1200	30	3302	117	1.0-2.0	7.5	9688	10560			9460
XAM150/φ1500-30	150	φ1500	30	2275	49	1.0-2.0	11	10405	7700	2300	1900	5700	1150	1700	1150
XAM200/φ1500-30	200	φ1500	30	3003	65	1.0-2.0	11	11963	8820			6820
XAM250/φ1500-30	250	φ1500	30	3777	82	1.0-2.0	11	13619	10010			8010
XAM300/φ1500-30	300	φ1500	30	4505	98	1.0-2.0	11	15178	11130			9130
XAM350/φ1500-30	350	φ1500	30	5233	114	1.0-2.0	11	16736	2250			10250
XAM400/φ1500-30	400	φ1500	30	6006	131	1.0-2.0	11	18392\|	3440			11440
XAM450/φ1500-30	450	φ1500	30	6734	147	1.0-2.0	11	19950	4560			12560
XAM200/φ2000-35	200	φ2000	35	3471	34	1.0-2.0	15	15668	7636	2800	2400	5536	1650	2200	1400
XAM300/φ2000-35	300	φ2000	35	5257	52	1.0-2.0	15	19122	9148			7048
XAM400/φ2000-35	400	φ2000	35	7042	70	1.0-2.0	15	22577	0660			8560
XAM500/φ2000-35	500	φ2000	35	8728	87	1.0-2.0	15	25839	1208			9988
XAM600/φ2000-35	600	φ2000	35	10514	105	1.0-2.0	15	29294	13600			11500
XAM700/φ2000-35	700	φ2000	35	12299	123	1.0-2.0	15	32749	5112			13012
XAM750/φ2000-35	750	φ200	035	13092	131	1.0-2.0	15	34284	15784			13684

Frequently Asked Questions

Our popular products include: vehicle-mounted sludge solidification units, diaphragm filter presses, sludge dewatering machines, as well as engineering design and installation services for municipal sludge and sand-washing sludge treatment.

How to choose the right filter press model based on material properties?

Selecting a filter press model depends on key material properties: particle size (to determine filter cloth mesh), viscosity (affects required pressure), corrosiveness (dictates filter plate material, e.g., PP for mild corrosion, stainless steel for strong), and solid content (influences filtration area and cycle time). High-solids materials need larger filtration areas, while abrasive materials require wear-resistant plates. Match pressure ratings to material viscosity—thicker slurries need higher pressure (1.0–2.5 MPa) for effective dewatering.

What to do if filter plates leak?

First, stop operation and check:

Filter cloths: Replace damaged or misaligned cloths that disrupt sealing.
Filter plate seals: Inspect for cracks, wear, or debris; clean seals or replace plates if damaged.
Pressure imbalance: Ensure uniform pressure across plates (adjust hydraulic system if uneven).
Plate alignment: Realign plates if shifted during operation. Test with low pressure after fixes to confirm leaks are resolved.

Do filter cloths need regular replacement? How often?

Yes, filter cloths require regular replacement as they clog, tear, or degrade over time, reducing filtration efficiency. Frequency depends on material: 4–8 weeks for abrasive/viscous materials (e.g., mining slurries); 3–6 months for less harsh materials (e.g., food-grade liquids). Signs to replace early: slower filtration, increased pressure, or visible damage (holes, fraying).

Is installation and operation training provided after purchase?

We offer installation and operation training post-purchase. This typically includes on-site installation guidance, hands-on operation training (e.g., setting parameters, troubleshooting), and documentation (manuals, video tutorials). Some provide follow-up support for 1–3 months to ensure operators master key functions, especially for automated or custom models.

If the power supply is not the issue, how to fix the machine tripping and shutting down?

Check these common causes:

Overload: Motor may be overworked (e.g., excessive slurry feed); reduce load or inspect for jammed components (e.g., filter plate movement).
Faulty sensors: Pressure or temperature sensors may trigger safety shutdowns; calibrate or replace malfunctioning sensors.
Hydraulic system issues: Low oil level or clogged filters can cause pressure spikes; check fluid levels and clean/replace filters.
Electrical connections: Loose wires in control panels may interrupt power; tighten connections and inspect for short circuits.
