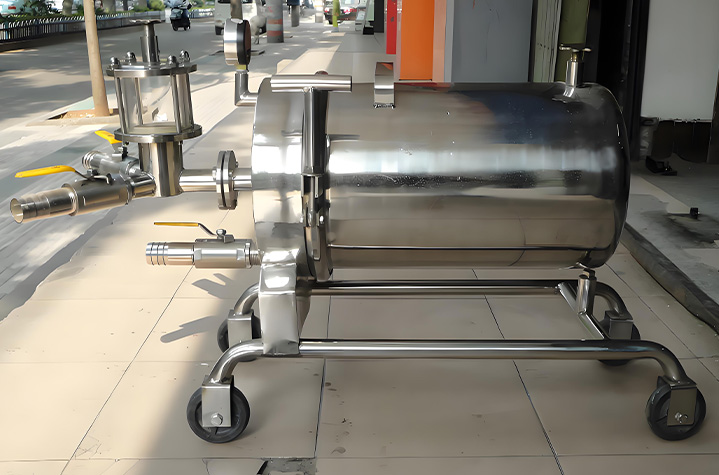

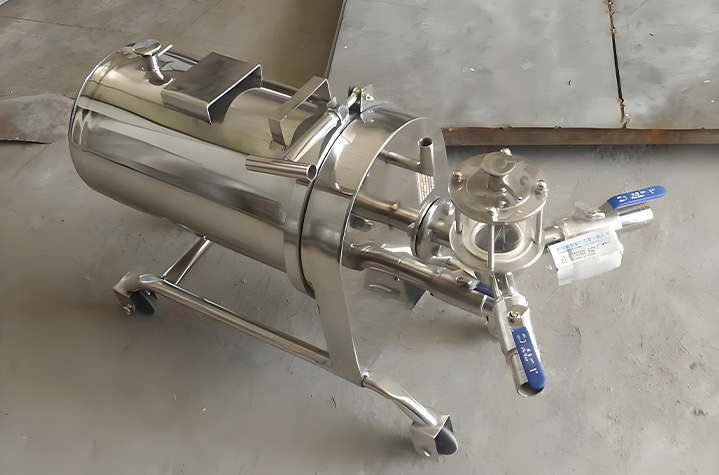

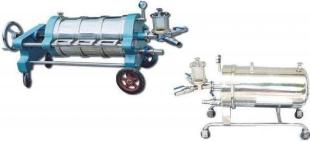

Diatomite Filter

This filter adopts advanced international technology and is made of high-quality 1Cr18Ni9Ti stainless steel, using diatomaceous earth as a filter aid.

Get in Touch

Share To:

Home / Products / Fitration Equipment / Diatomite Filter

Product Introduction

It represents a significant step forward for the Chinese beverage industry, transitioning from outdated cotton cake filtration to advanced international filtration technology.

Key Features and Applications

Low filtration cost

The filter features an elegant appearance, simple operation, low filtration cost, and high efficiency. The filtration clarity can reach 99.8%, and with proper operation, even Escherichia coli can be removed.

Widely used

It has been widely used in industries such as liquor, rice wine, fruit juice, and water treatment, receiving high praise.
Our company is committed to helping you achieve excellent filtration results and ensuring the timely supply of spare parts.

Parameter Information

Model	Dimensions(mm)	FiltrationArea(㎡)	Number ofPlates	ValveDiameter(mm)	Flow Rate(Liquor,T/H)	Pressure(MPa)	RequiredPump Model
WK500-A	2450 ×750 ×850	15.9	38	Dg32	13-15T/H	≤0.3	YL20-25
WK500-B	1950 ×750 ×850	8.9	20	Dg32	8-10T/H	≤0.3	YL20-25
WK400-A	2350 ×680 ×800	9.8	38	Dg32	9-12T/H	≤0.3	YL10-25
WK400-1	1840 ×680 ×800	5.1	20	Dg32	6-8T/H	≤0.3	YL5-25
WK330-II	1700 ×600 ×750	3.4	20	Dg32	3-5T/H	≤0.3	YL5-25
WK330-Ⅲ	1600 ×600 ×750	2.5	15	Dg32	2-4T/H	≤0.3	YL5-25
WK250	1100 ×350 ×450	2	20	Dg32	1-3T/H	≤0.2	YL3-20
WK220	900×300×400	1	15	Dg32	1-2T/H	≤0.2	YL3-20

Note: The above images and parameters are for reference only. Please refer to the actual order for final confirmation.

Frequently Asked Questions

Our popular products include: vehicle-mounted sludge solidification units, diaphragm filter presses, sludge dewatering machines, as well as engineering design and installation services for municipal sludge and sand-washing sludge treatment.

How to choose the right filter press model based on material properties?

Selecting a filter press model depends on key material properties: particle size (to determine filter cloth mesh), viscosity (affects required pressure), corrosiveness (dictates filter plate material, e.g., PP for mild corrosion, stainless steel for strong), and solid content (influences filtration area and cycle time). High-solids materials need larger filtration areas, while abrasive materials require wear-resistant plates. Match pressure ratings to material viscosity—thicker slurries need higher pressure (1.0–2.5 MPa) for effective dewatering.

What to do if filter plates leak?

First, stop operation and check:

Filter cloths: Replace damaged or misaligned cloths that disrupt sealing.
Filter plate seals: Inspect for cracks, wear, or debris; clean seals or replace plates if damaged.
Pressure imbalance: Ensure uniform pressure across plates (adjust hydraulic system if uneven).
Plate alignment: Realign plates if shifted during operation. Test with low pressure after fixes to confirm leaks are resolved.

Do filter cloths need regular replacement? How often?

Yes, filter cloths require regular replacement as they clog, tear, or degrade over time, reducing filtration efficiency. Frequency depends on material: 4–8 weeks for abrasive/viscous materials (e.g., mining slurries); 3–6 months for less harsh materials (e.g., food-grade liquids). Signs to replace early: slower filtration, increased pressure, or visible damage (holes, fraying).

Is installation and operation training provided after purchase?

We offer installation and operation training post-purchase. This typically includes on-site installation guidance, hands-on operation training (e.g., setting parameters, troubleshooting), and documentation (manuals, video tutorials). Some provide follow-up support for 1–3 months to ensure operators master key functions, especially for automated or custom models.

If the power supply is not the issue, how to fix the machine tripping and shutting down?

Check these common causes:

Overload: Motor may be overworked (e.g., excessive slurry feed); reduce load or inspect for jammed components (e.g., filter plate movement).
Faulty sensors: Pressure or temperature sensors may trigger safety shutdowns; calibrate or replace malfunctioning sensors.
Hydraulic system issues: Low oil level or clogged filters can cause pressure spikes; check fluid levels and clean/replace filters.
Electrical connections: Loose wires in control panels may interrupt power; tighten connections and inspect for short circuits.
