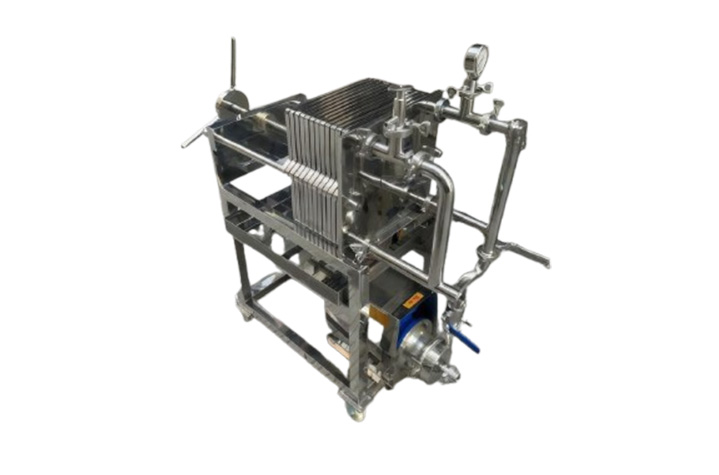

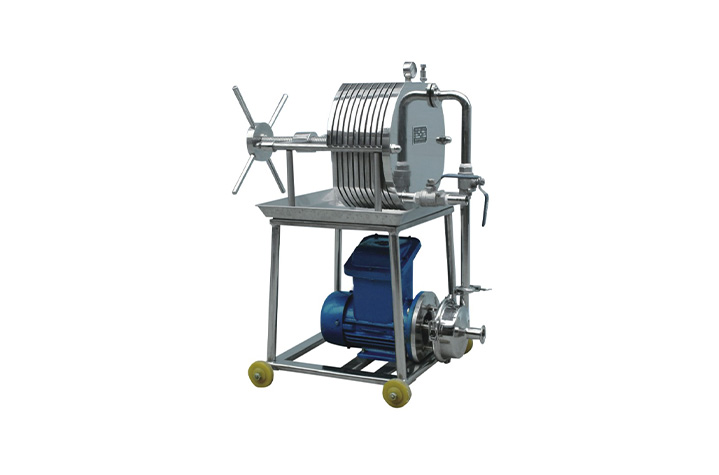

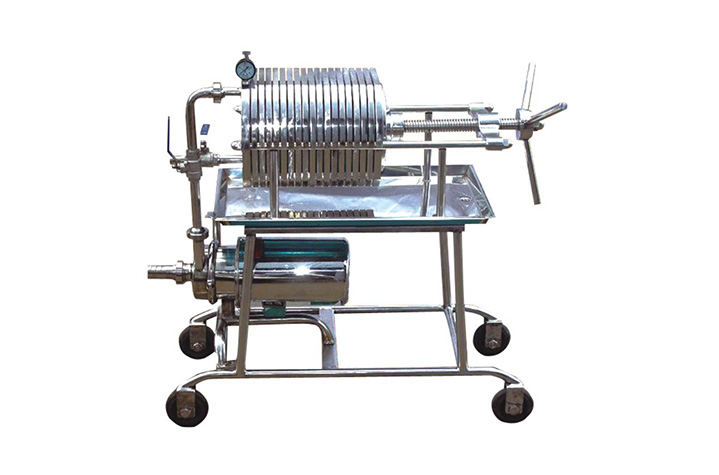

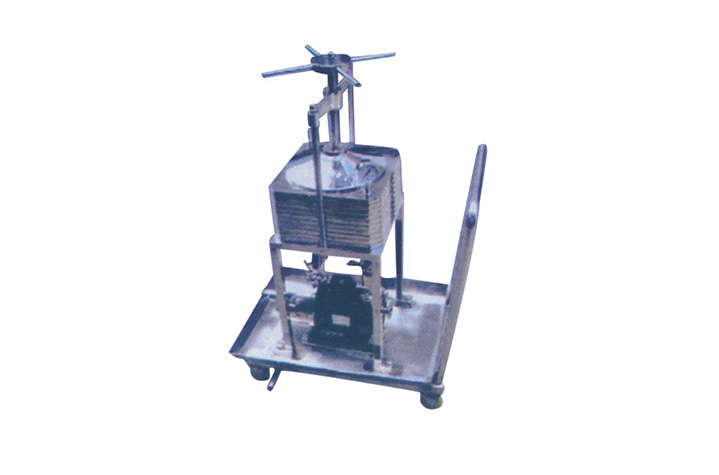

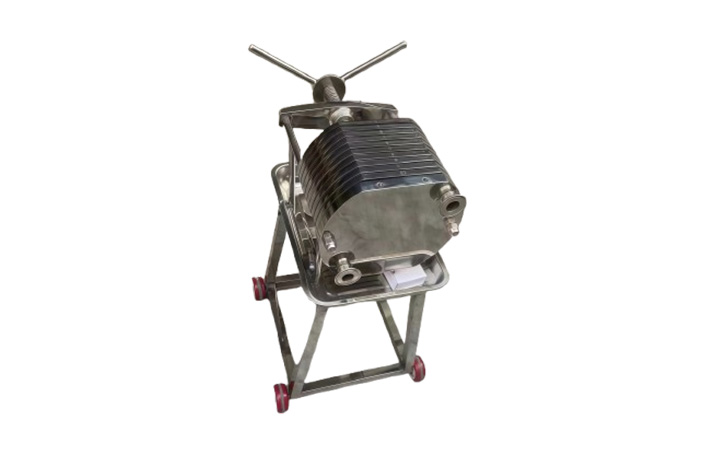

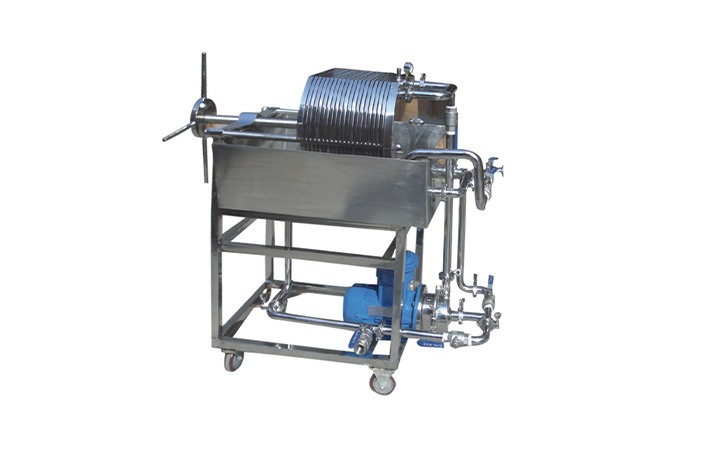

Operation Principle
The suspension is pumped into each sealed chamber of the filter. Under pressure, the filtrate passes through the filter medium, membranes, or other filter materials, and is discharged through the outlet, while the solids remain between the filter plates to form a filter cake, thus achieving solid-liquid separation.
Key Features
This machine is made of high-quality SUS304 or SUS316L stainless steel, with high strength, corrosion resistance, and durability.
Multi-layer filtration is adopted. Users can replace different filter media (filter cloth, filter paper, filter membrane, etc.) according to their process requirements (coarse filtration, semi-fine filtration, fine filtration).
During operation, the machine has good sealing performance, no material loss, easy operation, and convenient maintenance. The filter plates adopt a flat-thread design, which enhances sealing and reduces filter material loss.
All sealing components are made of silicone rubber or fluororubber, resistant to high temperatures, non-toxic, and leak-free.
Equipped with a stainless-steel pump, featuring low noise, large flow, high head, and long service life.
Can be designed as mobile or fixed type, with enclosed or open structures, depending on user requirements.
Parameter Information
| Model | Layers | Filtration Area (㎡) | Filter Size(mm) | FiltrationMedium | FiltrationPressure (MPa) | Water Flow(t/h) | Motor Power(kw) | Dimensions (mm) |
| CR-100 | 10 | 0.078 | φ100 | 0.8 | 0.15 | 0.8 | 0.55 | 600×300 ×600 |
| CR-150 | 10 | 0.17 | φ150 | 0.8 | 0.15 | 1.5 | 0.75 | 650×380 ×650 |
| CR-200 | 10 | 0.34 | φ200 | 0.8 | 0.15 | 2 | 1.1 | 650×400 ×700 |
| CR-300 | 10 | 0.7 | φ300 | 0.8 | 0.15 | 4 | 1.1 | 700×500 ×800 |
| CR-400 | 10 | 1.25 | φ400 | 0.8 | 0.15 | 6 | 1.1 | 900×600×1000 |
| CR-400 | 16 | 2 | φ400 | 0.8 | 0.15 | 9 | 1.5 | 1000×600 ×1000 |
| CR-400 | 20 | 2.5 | φ400 | 0.8 | 0.2 | 10 | 1.5 | 1100×600 ×1000 |
| CR-400 | 32 | 4 | φ400 | 0.8 | 0.3 | 13 | 2.2 | 1320×600 ×1000 |
| F-200 | 10 | 0.4 | 200×200 | 0.8 | 0.15 | 3 | 1.1 | 650×380 ×650 |
| F-300 | 10 | 0.9 | 300×300 | 0.8 | 0.15 | 6 | 1.1 | 700×500 ×800 |
| F-400 | 10 | 2 | 400×400 | 0.8 | 0.15 | 10 | 1.5 | 900×600×1000 |
| F-400 | 20 | 3 | 400×400 | 0.8 | 0.15 | 12 | 1.2 | 1100×600 ×1000 |
| F-400 | 26 | 4 | 400×400 | 0.8 | 0.2 | 15 | 2.2 | 1150×600 ×1000 |
| F-400 | 32 | 5 | 400×400 | 0.8 | 0.2 | 18 | 2.2 | 1200×600 ×1000 |
| F-400 | 38 | 6 | 400×400 | 0.8 | 0.3 | 21 | 2.2 | 1300×600 ×1000 |
| F-400 | 44 | 7 | 400×400 | 0.8 | 0.3 | 23 | 3.0 | 1350×600 ×1000 |
Remarks:
1. For higher flow requirements, customization is available.
2. When using a booster pump, an explosion-proof motor and Grundfos pump are required, with additional cost adjustment. Note: The above images and specifications are for reference only. Please refer to the actual product when ordering.
