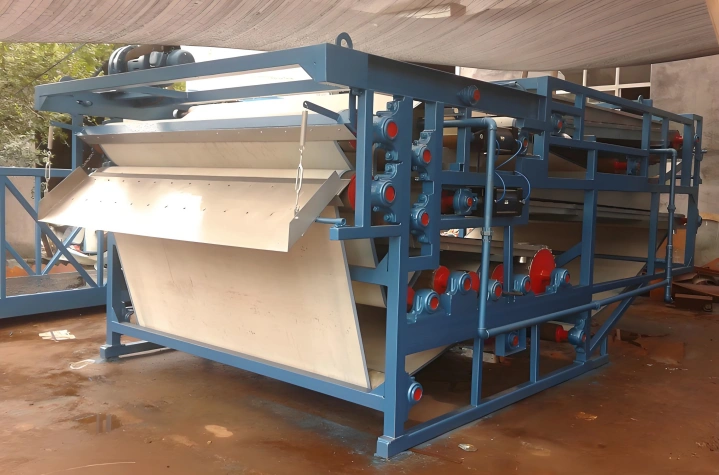

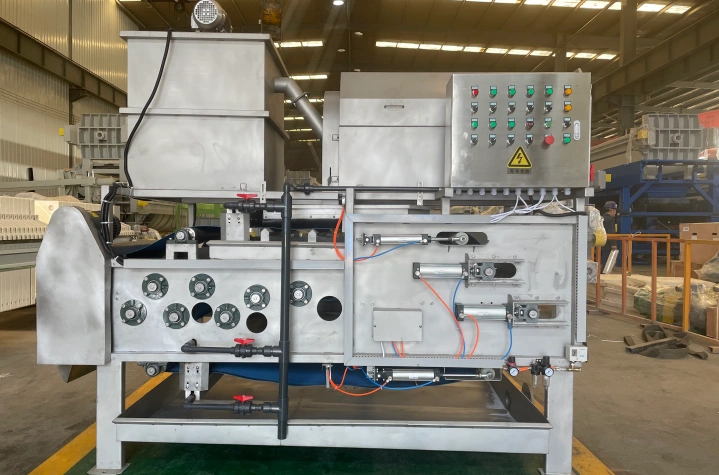

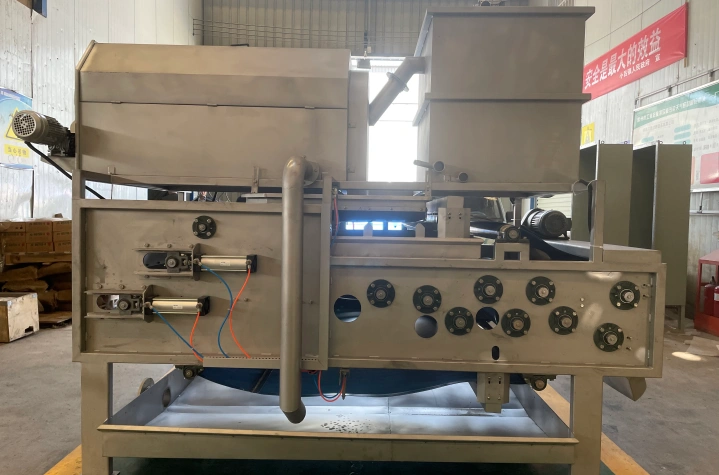

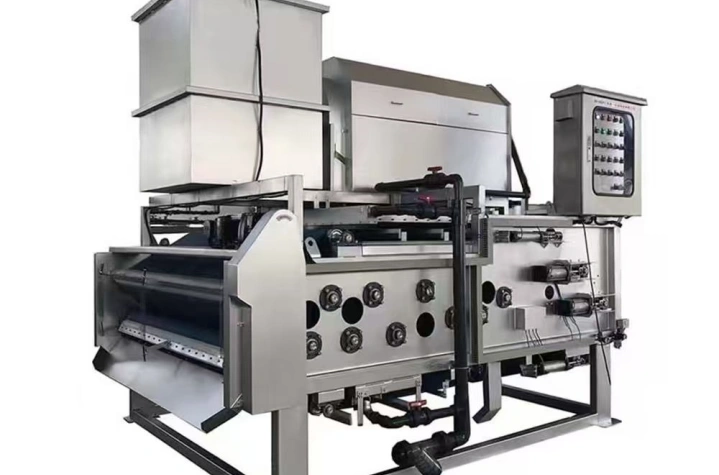

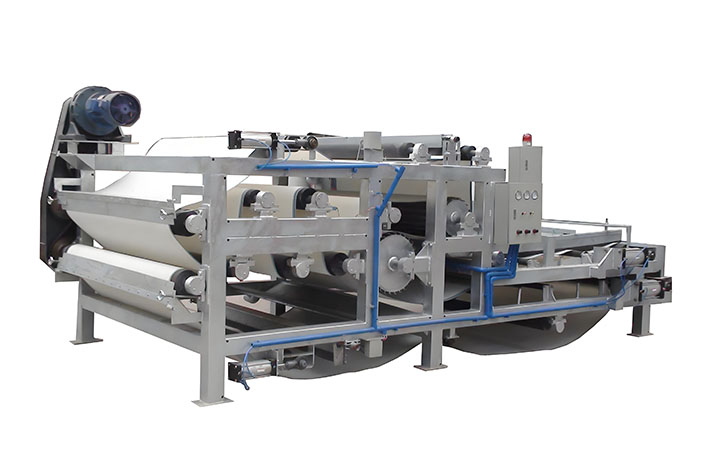

Stainless Steel Belt Type Sludge Dehydrator

Full stainless-steel structure + imported filter cloth + low energy & low noise — a durable and efficient sludge dewatering solution.

Get in Touch

Share To:

Home / Products / Sludge Dewatering Machine / Stainless Steel Belt Type Sludge Dehydrator

Applications

• Industrial wastewater sludge treatment

• Slaughterhouse and livestock sludge treatment

• Municipal wastewater and water treatment plants

• Food, chemical, mining, and other industrial solid-liquid separation

Key Features and Advantages

Corrosion-resistant

Full stainless-steel body ensures long service life.

High efficiency

Imported filter cloth delivers stable operation and easy maintenance.

Energy-saving & quiet

Low energy consumption, low speed, low noise (≤75dB(A)).

Safe & reliable

Pneumatic belt alignment, multi-point safety monitoring, and emergency stop protection.

User-friendly

Easy to operate and simple to maintain.

Parameter Information

Specifications Dimension/Model		B-500DQ	B-750DQ	QB-1000D	QB-1250D	Remark
Belt Width (mm)		500	750	1000	1250
Capacity (m³/hr) (Sludge concentration 1.5–2.5%)		3.0~5.2	4.5~7.5	6.5~10.5	7.5~12.5	Depends on sludge type
Filter Cloth Tension (kg)		45-78	68-113	98-158	113-188	Depends on sludge type
Sludge Cake Moisture Content (%)		63~84.5	63~84.5	63~84.5	63~84.5	Depends on sludge type
Power (HP)	Main Motor (Stepless Speed Regulation)	1/2	1/2	1/2	1/2
	Mixing Motor (HP)	1/4	1/4	1/2	1/2
	Filter Cloth Washing Pump (HP)	1/4	1/4	1/2	1/2
Filtrate Water Tank		yes	yes	yes	yes
Overall Dimensions L × W × H (mm)	L	2600	2600	2600	2600	Please confirm actual installation size before ordering
	W	1050	1300	1550	1800
	H	2500	2700	2700	2900
Base Frame Size L × W × H (mm)		2100×830	2100×1080	2100×1330	2100×1580
Reference Weight (kg)		830	1000	1210	1450

Frequently Asked Questions

Our popular products include: vehicle-mounted sludge solidification units, diaphragm filter presses, sludge dewatering machines, as well as engineering design and installation services for municipal sludge and sand-washing sludge treatment.

How to choose the right filter press model based on material properties?

Selecting a filter press model depends on key material properties: particle size (to determine filter cloth mesh), viscosity (affects required pressure), corrosiveness (dictates filter plate material, e.g., PP for mild corrosion, stainless steel for strong), and solid content (influences filtration area and cycle time). High-solids materials need larger filtration areas, while abrasive materials require wear-resistant plates. Match pressure ratings to material viscosity—thicker slurries need higher pressure (1.0–2.5 MPa) for effective dewatering.

What to do if filter plates leak?

First, stop operation and check:

Filter cloths: Replace damaged or misaligned cloths that disrupt sealing.
Filter plate seals: Inspect for cracks, wear, or debris; clean seals or replace plates if damaged.
Pressure imbalance: Ensure uniform pressure across plates (adjust hydraulic system if uneven).
Plate alignment: Realign plates if shifted during operation. Test with low pressure after fixes to confirm leaks are resolved.

Do filter cloths need regular replacement? How often?

Yes, filter cloths require regular replacement as they clog, tear, or degrade over time, reducing filtration efficiency. Frequency depends on material: 4–8 weeks for abrasive/viscous materials (e.g., mining slurries); 3–6 months for less harsh materials (e.g., food-grade liquids). Signs to replace early: slower filtration, increased pressure, or visible damage (holes, fraying).

Is installation and operation training provided after purchase?

We offer installation and operation training post-purchase. This typically includes on-site installation guidance, hands-on operation training (e.g., setting parameters, troubleshooting), and documentation (manuals, video tutorials). Some provide follow-up support for 1–3 months to ensure operators master key functions, especially for automated or custom models.

If the power supply is not the issue, how to fix the machine tripping and shutting down?

Check these common causes:

Overload: Motor may be overworked (e.g., excessive slurry feed); reduce load or inspect for jammed components (e.g., filter plate movement).
Faulty sensors: Pressure or temperature sensors may trigger safety shutdowns; calibrate or replace malfunctioning sensors.
Hydraulic system issues: Low oil level or clogged filters can cause pressure spikes; check fluid levels and clean/replace filters.
Electrical connections: Loose wires in control panels may interrupt power; tighten connections and inspect for short circuits.
