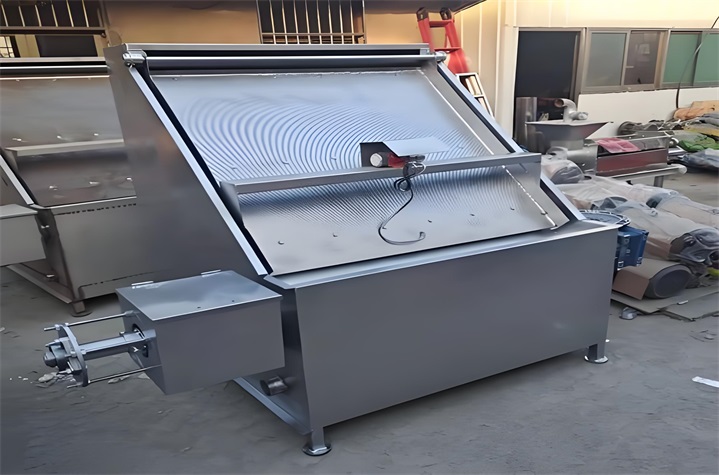

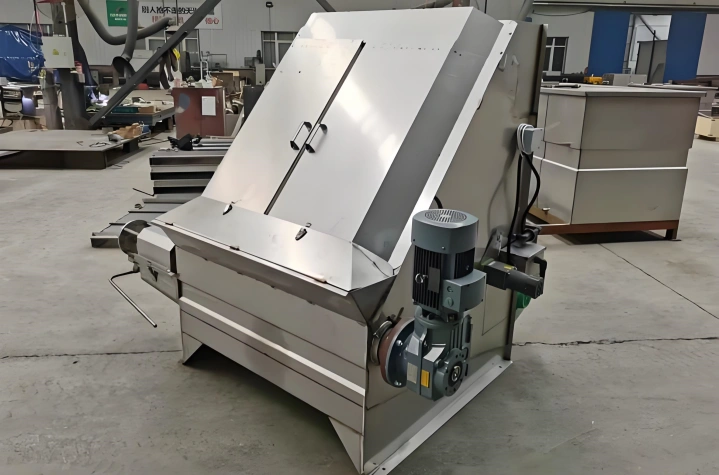

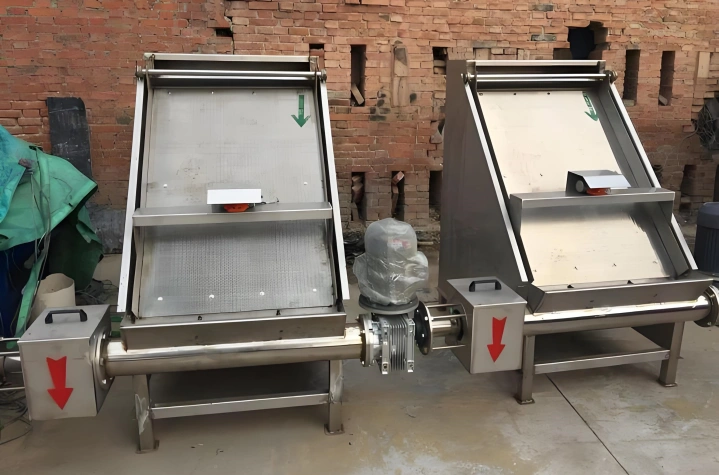

Water Cutting Net Type Solid-liquid Separator

It is also used in industrial production for solid-liquid separation and the recovery of valuable materials, making it an excellent device for filtering or recovering suspended solids, floating materials, sediments, and other solid or colloidal substances.

Get in Touch

Share To:

Home / Products / Sludge Dewatering Machine / Water Cutting Net Type Solid-liquid Separator

Scope of Application

Used in small-scale industrial wastewater treatment in livestock farming, papermaking, slaughterhouses, leather, sugar making, brewing, kitchen waste, textile, dyeing, petrochemical, and other industries, for removing suspended solids, floating substances, and sediments.

Used in industries such as papermaking, alcohol, starch, and food processing to recover fibers, residues, and other valuable substances.

Used for sludge pretreatment or river dredging.

Working Principle and Structure

The main body of the wedge wire screen solid-liquid separator is a stainless steel flat filter screen surface, precisely manufactured from wedge-shaped steel rods. The wastewater to be treated is evenly distributed onto the inclined screen surface through an overflow weir. Because the screen surface has small, smooth gaps on the front side and larger gaps on the back side, drainage is smooth and clogging is avoided. Solid materials are retained, while filtered water flows out through the screen gaps. At the same time, under hydraulic action, the solids are pushed into the spiral groove at the lower end of the screen plate. The screw conveys the solids forward to the pressing section for further dewatering. The dewatered dry residue is discharged through the outlet, thus achieving solid-liquid separation.

Widely used

The wedge wire screen solid-liquid separator effectively reduces the concentration of suspended solids in water, thereby lowering the treatment load of subsequent processes. It is also used in industrial production for solid-liquid separation and the recovery of valuable materials, making it an excellent device for filtering or recovering suspended solids, floating materials, sediments, and other solid or colloidal substances.

Parameter Information

Maximum treatable solid content (SS): 8–11%

Solid-liquid Separator JDFLJ-70: Wastewater treatment capacity: 10–20 tons per hour Power: Submersible pump 1.5 kW Head: 6 m; Pressing machine: 2.2 kW Water pump: 550 W Screen washer: 1 unit (25 W) Mixer: 2.2 kW	Solid-liquid Separator JDFLJ-120: Wastewater treatment capacity: 20–40 tons per hour Power: Submersible pump 2.2 kW Head: 8 m; Pressing machine: 3.0 kW Water pump: 750 W Screen washer: 2 units (50 W) Mixer: 2.2 kW	Solid-liquid Separator JDFLJ-150: Wastewater treatment capacity: 40–50 tons per hour Power: Submersible pump 4.0 kW Head: 8 m; Pressing machine: 4.0 kW Water pump: 750 W Screen washer: 2 units (50 W) Mixer: 2.2 kW
Note: Without installing the mixer, solids will settle at the bottom of the tank, leading to excessively high concentrations. This may overload the screen, affect machine operation, and cause malfunction. Therefore, the mixer must be installed to maintain uniform concentration for proper operation.
Supply Scope: Main unit (pressing machine, automatic screen washing device) One Taiwan-made submersible pump One fully automatic control box (3-phase, 4-wire power supply) One set of water level probes 7 meters of soft hose
Remark: The above images and parameters are for reference only. Please refer to the actual order for confirmation.
